Angle Encoder FAGOR PCD Grinding Machine Featuring SCHNEEBERGER Linear System and 150mm Grinding Wheel Diameter for Cutting Tool Grinding

Product Description:

The ZT-90V CNC Saw Blade Grinding Machine is a state-of-the-art PCD grinding machine designed for precision and efficiency in the processing of hard materials. Engineered with advanced technology, this machine is specifically tailored to handle the demanding requirements of grinding Polycrystalline Diamond (PCD) and Polycrystalline Cubic Boron Nitride (PCBN) materials, making it an indispensable tool for industries that require superior cutting performance and durability.

One of the standout features of the ZT-90V is its capability to grind saw blades with a maximum diameter of up to 150 mm. This capacity allows the machine to accommodate a wide range of blade sizes, providing flexibility and versatility for various manufacturing needs. Whether you are working with small, intricate blades or larger saw blades, this machine delivers consistent, high-quality results.

The ZT-90V is equipped with a sophisticated 5-axis control system, which significantly enhances its grinding precision and operational efficiency. The 5-axis configuration allows for complex geometries and intricate blade designs to be ground with exceptional accuracy. This multi-axis control ensures that every cut and edge is flawlessly shaped, improving the overall performance and lifespan of the saw blades.

Utilizing Polycrystalline Diamond (PCD) as the tool material, the ZT-90V CNC Saw Blade Grinding Machine excels in grinding extremely hard materials that are typically challenging for conventional grinders. PCD is known for its outstanding hardness, wear resistance, and thermal stability, making it the ideal abrasive material for this type of application. The machine’s ability to grind PCD and PCBN materials with precision underscores its role as a premier hard materials grinder in the marketplace.

The tip radius capability of the ZT-90V ranges from 0 to 70 mm, providing a wide spectrum of grinding options to suit different blade designs and cutting profiles. This feature allows manufacturers to customize blade tips with precise radii, optimizing cutting performance for specific applications. Whether you need sharp, pointed tips or more rounded profiles, this machine can be adjusted to meet those specifications with ease.

As a specialized PCD grinding machine, the ZT-90V CNC Saw Blade Grinding Machine is ideal for industries such as woodworking, metalworking, and manufacturing sectors where high-performance blades are essential. Its ability to efficiently grind PCD/PCBN materials not only improves the cutting efficiency of the blades but also extends their operational life, reducing downtime and lowering overall production costs.

Moreover, the ZT-90V incorporates user-friendly CNC controls that facilitate ease of programming and operation. Operators can quickly set up grinding parameters to match the specific requirements of their production runs, ensuring consistent results and minimizing waste. The integration of advanced CNC technology also enables automated grinding processes, which enhances productivity and reduces the likelihood of human error.

In summary, the ZT-90V CNC Saw Blade Grinding Machine is a cutting-edge solution for anyone looking to enhance their blade manufacturing capabilities. With its maximum grinding diameter of 150 mm, versatile 5-axis operation, use of durable Polycrystalline Diamond tool material, and adjustable tip radius from 0 to 70 mm, it stands out as a top-tier PCD grinding machine. It is particularly effective as a hard materials grinder and PCD/PCBN materials grinder, providing outstanding precision, efficiency, and durability for demanding grinding applications.

Applications:

The CTSTC PCD Grinding Machine, model ZT-90CNC, is a highly advanced and reliable PCD/PCBN Tools grinder designed to meet the rigorous demands of modern manufacturing industries. Originating from China and certified with CE, this machine guarantees quality and precision in grinding operations. Its robust construction and sophisticated technology make it an ideal choice for grinding hard materials, ensuring exceptional performance and durability.

This PCD grinder is perfectly suited for a variety of application occasions and scenarios. It excels in the production and maintenance of cutting tools, especially those made from polycrystalline diamond (PCD) and cubic boron nitride (PCBN). Industries involved in machining hard metals, composites, and abrasive materials will find this machine invaluable for sharpening and shaping tools with high accuracy. The ZT-90CNC’s grinding wheel diameter of 150mm and a tip radius range of 0-70mm allow for versatile operations, catering to different tool geometries and specifications.

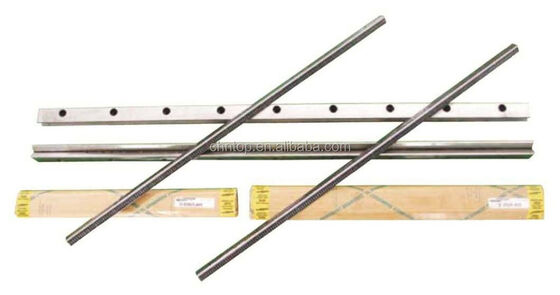

Thanks to its integration with SCHNEEBERGER linear guides, the machine ensures smooth and precise movements, enhancing grinding accuracy and surface finish quality. The machine operates at a voltage of 380V 50Hz, suitable for industrial environments, and uses advanced pixel size technology (3.75um*3.75um) to achieve meticulous control over grinding processes. This makes it ideal for tool manufacturers, aerospace component producers, and automotive parts manufacturers who require stringent tolerances and high-quality finishes.

The CTSTC ZT-90CNC PCD grinder is also highly adaptable for small batch and custom tool production, as the minimum order quantity is just one unit. It comes securely packaged in a sturdy plywood box to ensure safe delivery within 45-60 days. Flexible payment options including TT, LC, and Western Union make the purchasing process convenient for global clients.

In summary, the CTSTC PCD/PCBN Tools grinder is an essential hard materials grinder for any business involved in precision tool manufacturing. Its combination of advanced features, reliable performance, and user-friendly operation make it a top-tier choice for grinding applications requiring exceptional precision, efficiency, and durability.

Packing and Shipping:

Our PCD Grinding Machine is carefully packaged to ensure it reaches you in perfect condition. The machine is securely wrapped with protective materials and placed in a sturdy wooden crate to prevent any damage during transit. All delicate components are cushioned with foam padding, and the crate is sealed tightly to protect against dust and moisture.

For shipping, we partner with reliable logistics providers to offer safe and timely delivery worldwide. The machine is shipped via sea or air freight depending on your preference and destination. Tracking information will be provided once the order is dispatched, allowing you to monitor the shipment until it arrives at your location.

We also provide clear handling instructions and necessary documentation with the shipment to facilitate smooth customs clearance and installation upon arrival.

FAQ:

Q1: What is the brand and model number of this PCD Grinding Machine?

A1: The PCD Grinding Machine is branded CTSTC, and the model number is ZT-90CNC.

Q2: Where is the PCD Grinding Machine manufactured?

A2: This machine is made in China.

Q3: Does the PCD Grinding Machine have any certifications?

A3: Yes, the PCD Grinding Machine is CE certified, ensuring it meets European safety and quality standards.

Q4: What is the minimum order quantity for the CTSTC ZT-90CNC PCD Grinding Machine?

A4: The minimum order quantity for this product is 1 unit.

Q5: What are the packaging and delivery details for the PCD Grinding Machine?

A5: The machine is packaged in a sturdy plywood box, and the delivery time typically ranges from 45 to 60 days.

Q6: What payment methods are accepted for purchasing the CTSTC ZT-90CNC?

A6: Payment terms include TT (Telegraphic Transfer), LC (Letter of Credit), and Western Union.
